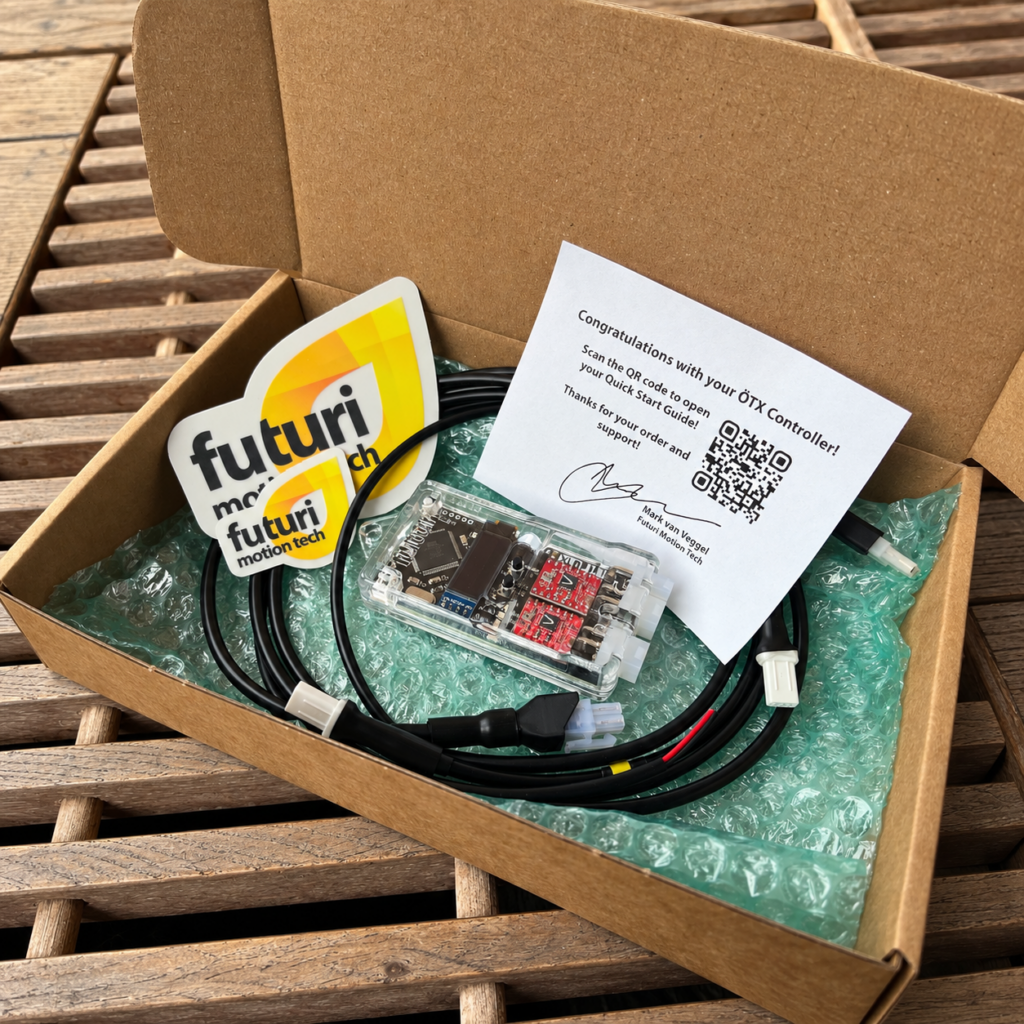

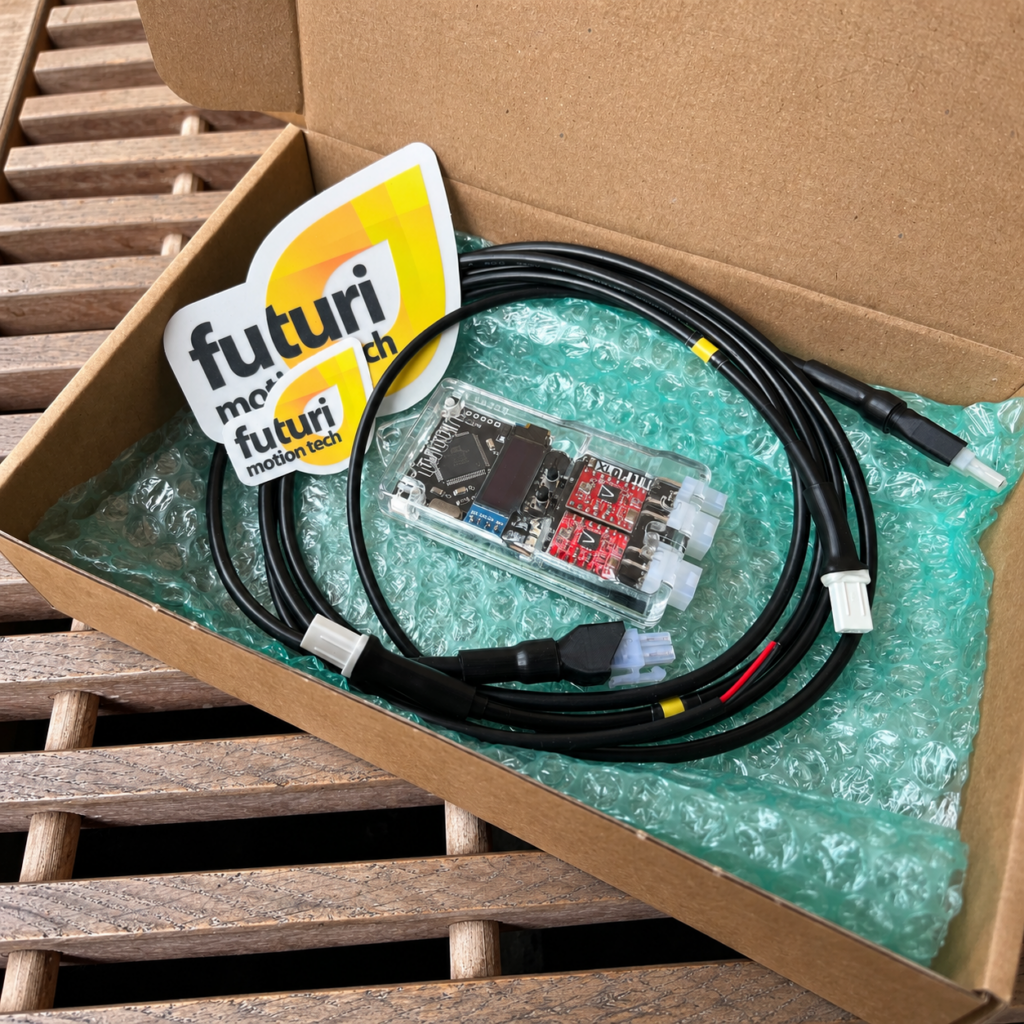

What’s included?

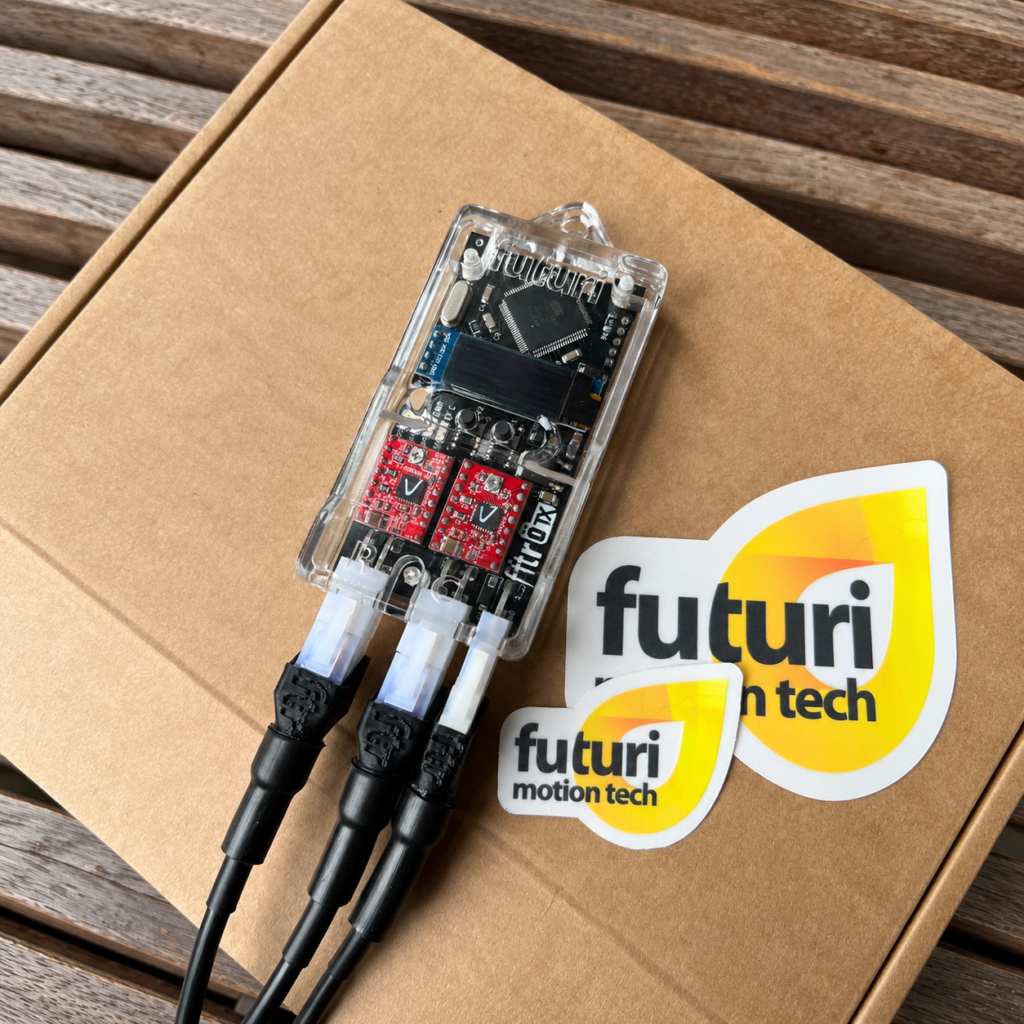

✓ ÖTX Controller in a transparent case
✓ Power cable, approximately 1 metre
✓ Rebound motor cable, approximately 1 metre
✓ Compression motor cable, approximately 1 metre
✓ Two Futuri Motion Tech stickers
✓ QR code link to the controller documentation

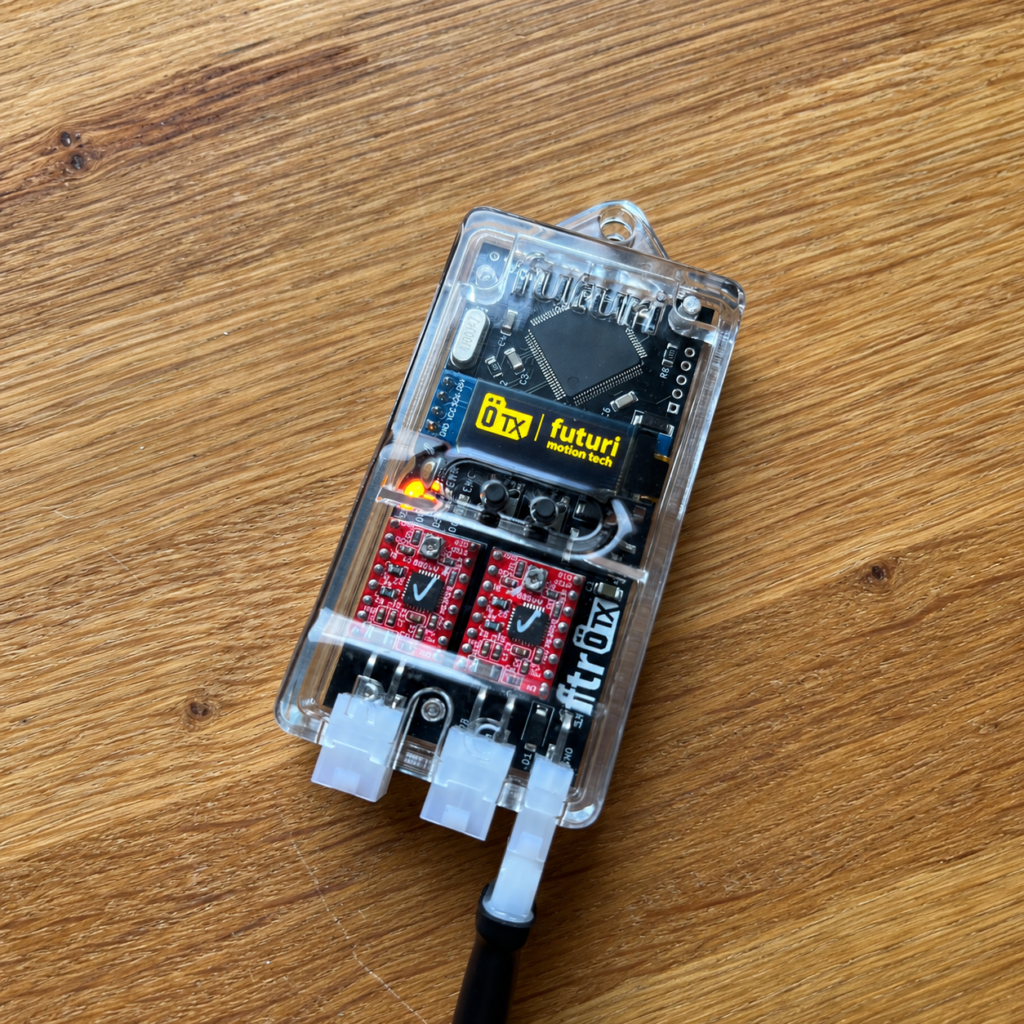

Controller dimensions: 88 × 48 × 21.6 mm, excluding the mounting lip.
Independent adjustment and three presets
Adjust rebound and compression independently using the controller’s two buttons. Each channel offers adjustment positions from 1 to 99, covering the range from open to closed.
Store three suspension presets and switch between them with a single button press. The display shows the active preset and the selected rebound and compression positions.
The displayed positions are not necessarily equivalent to the manual click settings of a particular suspension model.

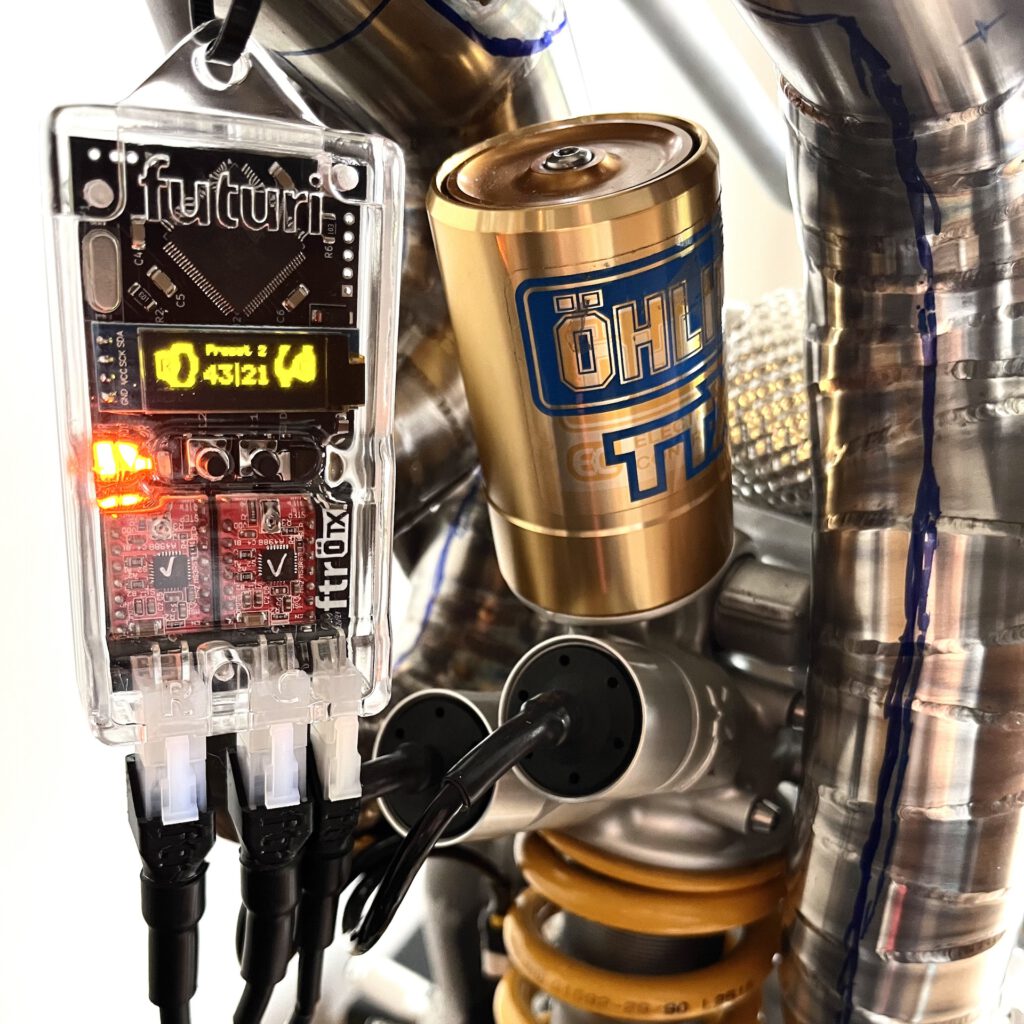

Use on a motorcycle

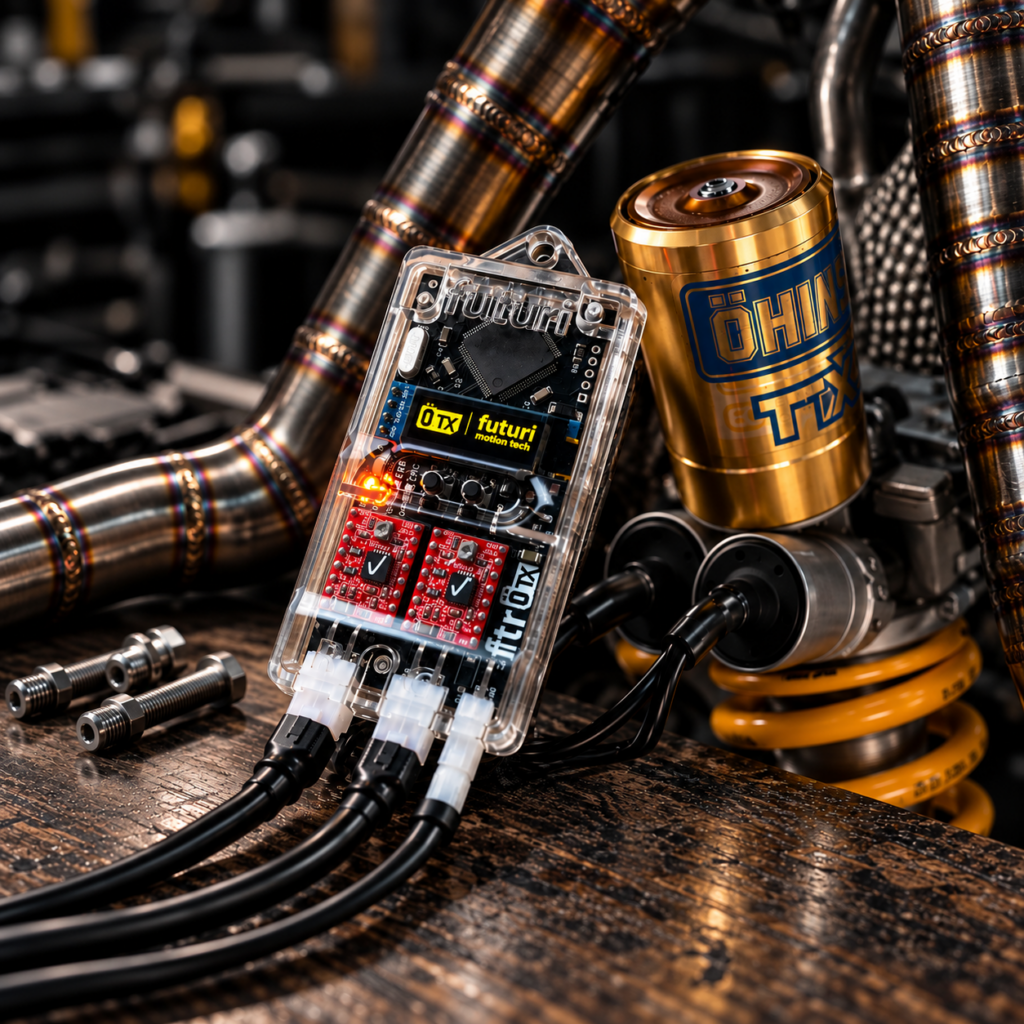

Use the ÖTX Controller in a custom motorcycle build or when upgrading an older motorcycle with compatible electronically adjustable Öhlins suspension.
Powered by the motorcycle’s 12V electrical system, it operates the suspension adjusters independently of the original suspension control system.
Leave the controller installed for convenient adjustment, or use it to set the desired positions and then disconnect it with the power switched off. The suspension retains its adjustment positions, allowing the controller to be used on another compatible component or motorcycle.
For suspension workshops
For suspension specialists, the ÖTX Controller provides direct access to compatible electronic adjusters on the workbench, without connecting the suspension to a motorcycle.
Using an external 10–15V DC power supply, open or close the adjusters during servicing and check the adjustment motors’ movement.
The controller can operate one or two compatible motors, including a single motor when working on an electronic steering damper.
Compatibility and connectors
The ÖTX Controller supports compatible electronically adjustable Öhlins front forks, rear shocks and steering dampers.

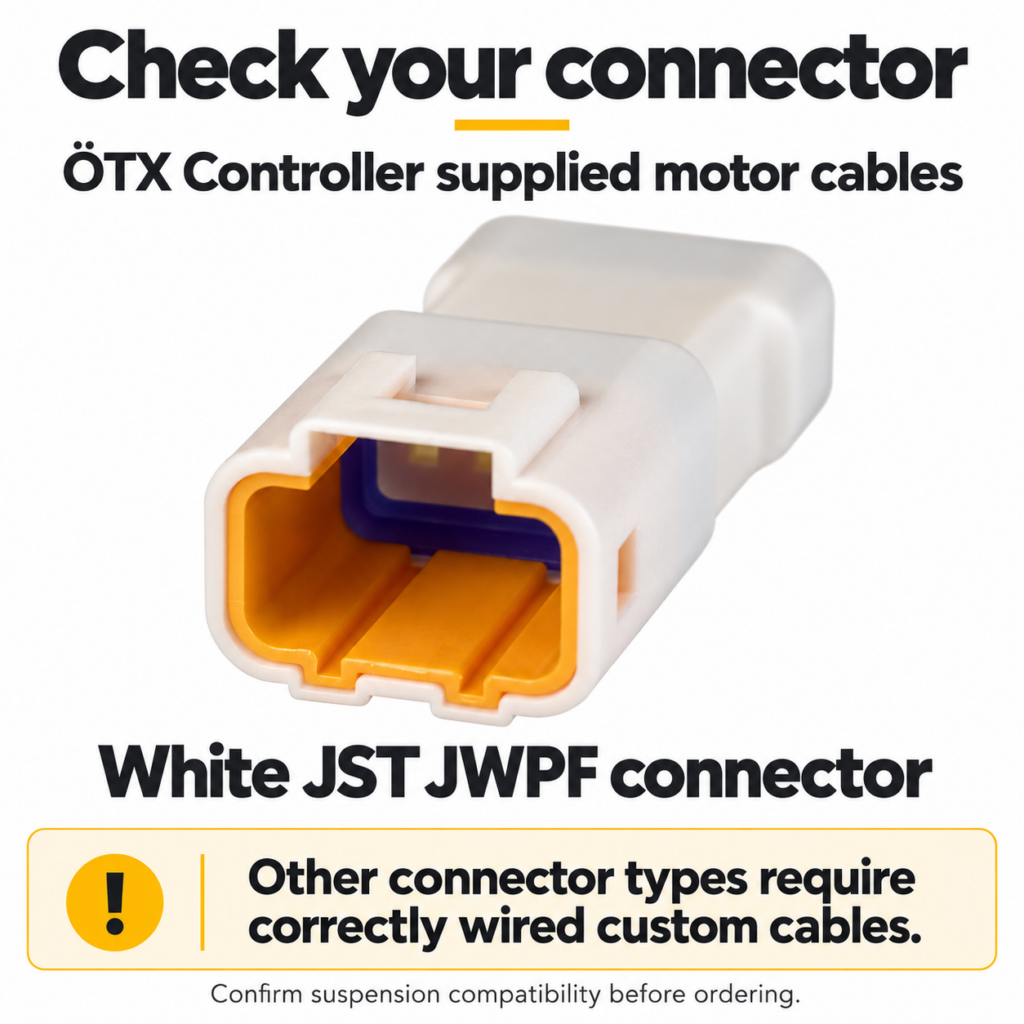

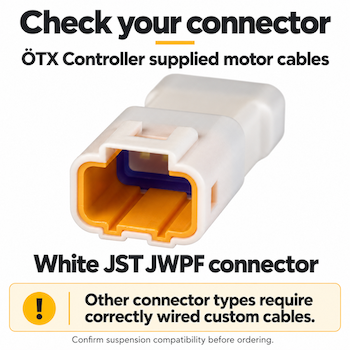

The supplied motor cables fit compatible suspension equipped with white JST JWPF connectors, as shown in the connector image. Other connector types require correctly wired custom cables.
The DIY Cable Guide explains how to identify the motor coil pairs and construct suitable cables.
If you are unsure about compatibility, contact Futuri Motion Tech with the suspension model and clear photos of its connectors before ordering.
Documentation and intended use
The Quick Start Guide covers installation and operation. The DIY Cable Guide provides instructions for making cables for components with alternative connectors.
The Quick Start Guide and DIY Cable Guide are included as digital downloads, available immediately after successful payment—so you can prepare before your controller arrives.
The controller is not waterproof. Protect the transparent case from prolonged direct sunlight. For track use only when installed on a motorcycle; also suitable for professional workshop use.
Availability and batch production

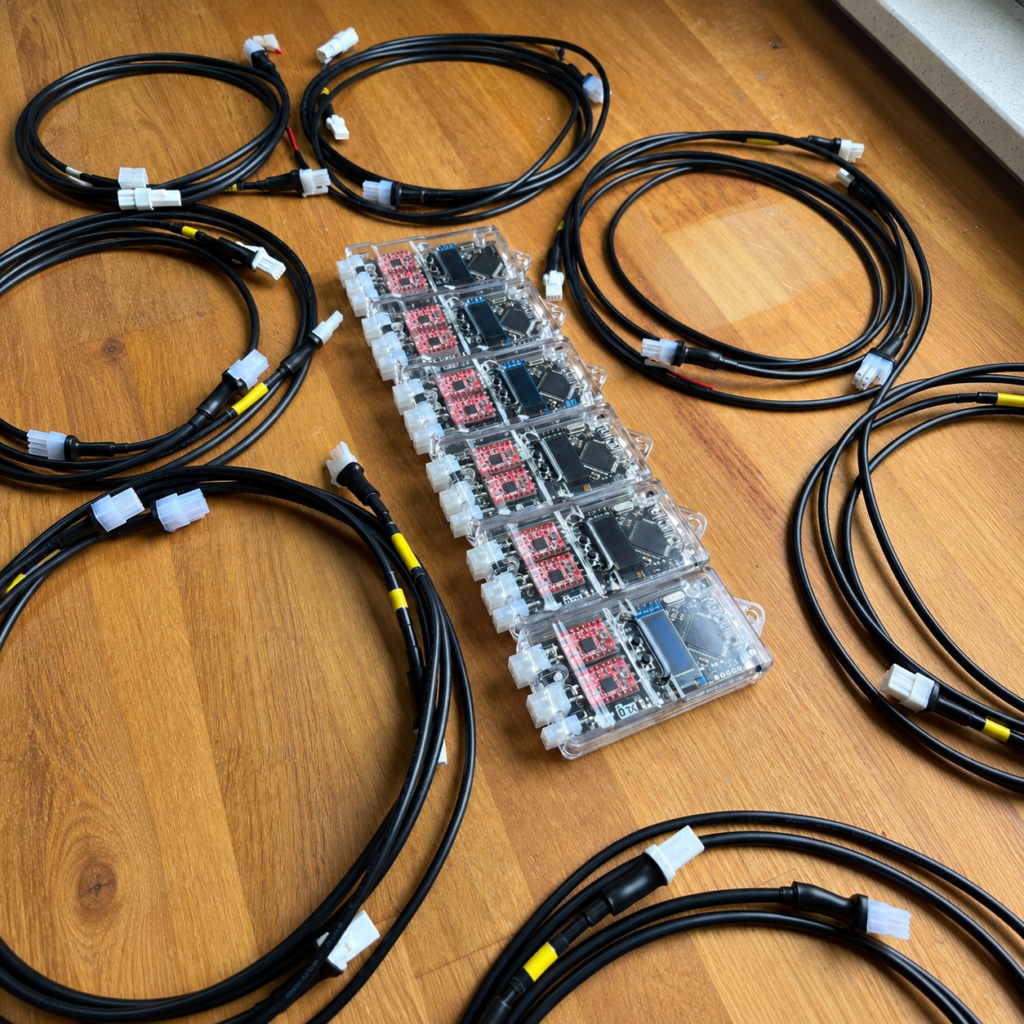

ÖTX Controllers are produced in small batches. When stock is unavailable, a new batch requires confirmed orders for at least two controllers in total.
Production takes approximately eight weeks after the batch is confirmed, followed by shipping. Contact Futuri Motion Tech to confirm availability or join the next batch.
