DUCATI FTR VECTOR

BREAKING DOWN THE ENGINE

Lets break down the engine to get everything looking good again! This engine looks like it has been in the rain or in the wet for some time. No worries, everything will be build back up like better then new.

Its a 1100EVO engine from a Hypermotard. To bad its not a DS engine. Offcourse i can change/convert the heads but i wont be spending a fortune on this project. So this is fine for now :).

Everything is off to get chemically stripped, glass bead blasted and cerakoted. In the meanwhile the heads will be tuned/flowed to achieve abit more power in the end ;). Expected 105HP on the rear wheel.

GATHERING PARTS

While working at Biggelaar Performance, building race bikes for Project Venom Racing and my own Desmoto project im coming across parts i out aside for this project. Also buying in bulk while buying for multiple projects helps.

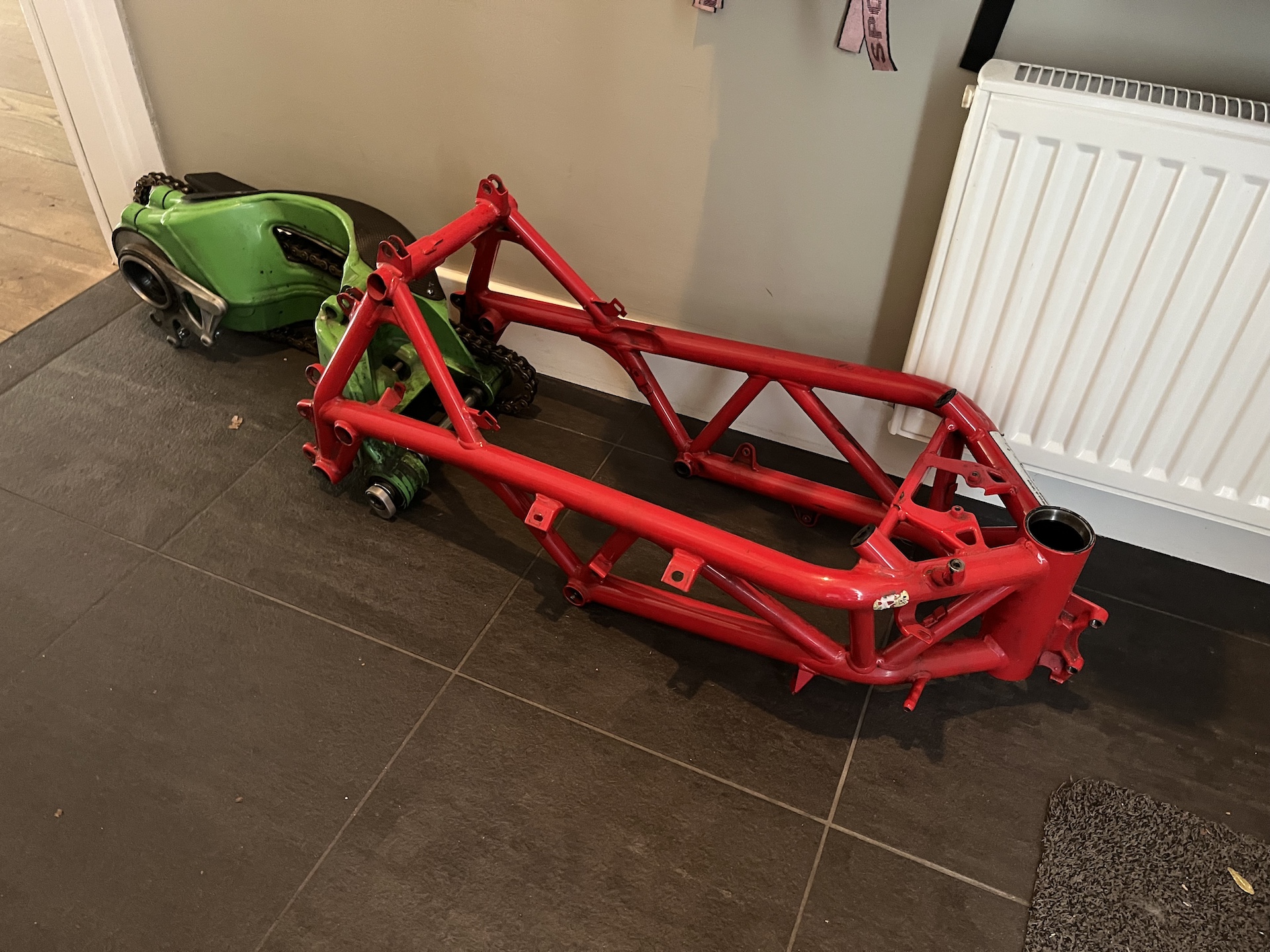

So here is some stuff i have already put aside. Moto-Master WSBK full floating T floater discs, CNC racing crankcase breather, Brembo P4 radial calipers from a Aprillia, Ducati 1098 front fork with black DLC coating, Ducati 1000SS frame and Ducabike clutch goodies.

Already see the theme of the bike? Jup, BLACK! Not sure on the accent color yet. Probably yellow/orange haha.

BRAKING BEAUTY

While building our race bikes for Project Venom Racing we are equiping all of them with Discacciati braking parts. Why not do the same for this project?

Used by many racing teams, and the quality/service is amazing!

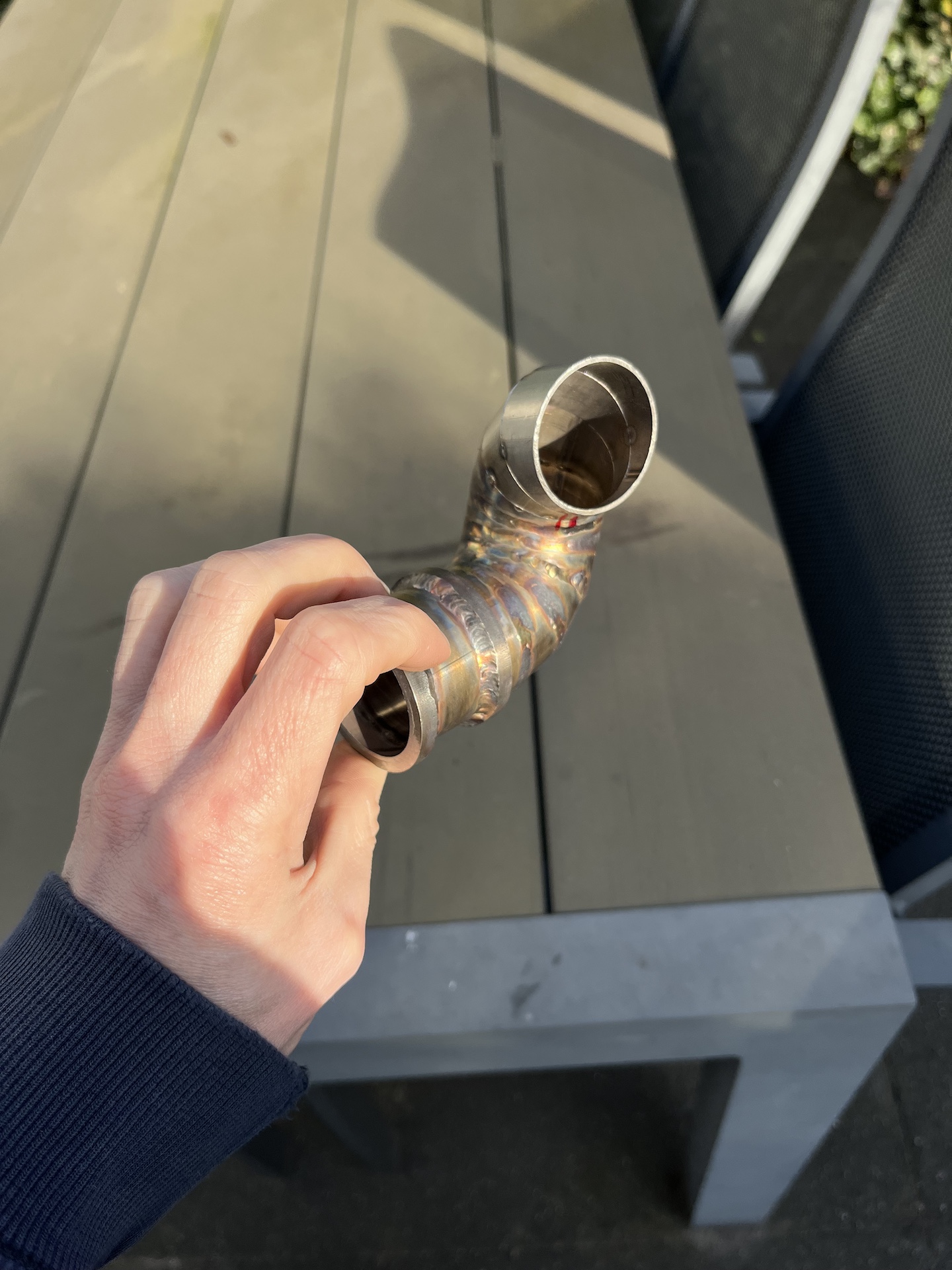

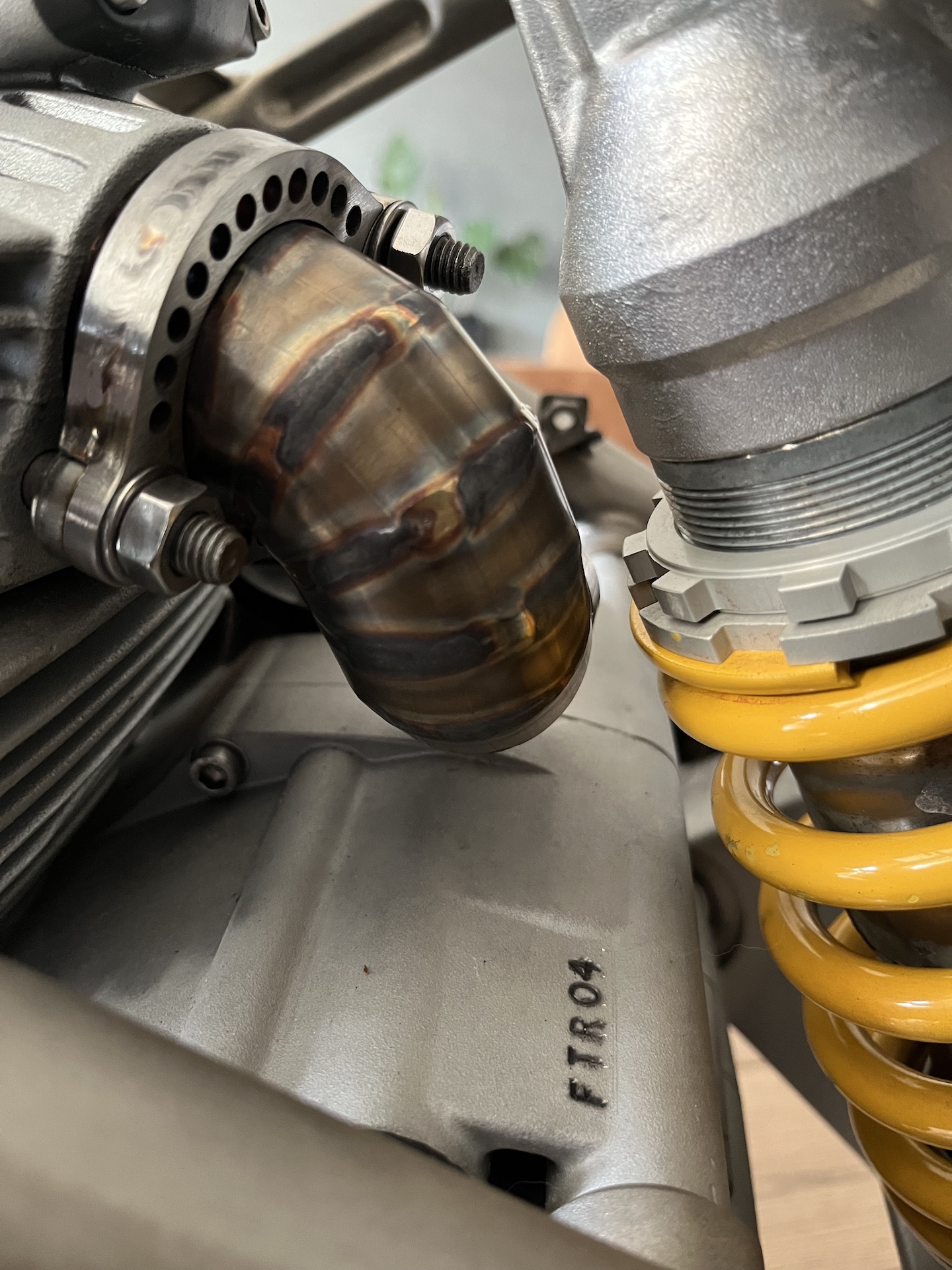

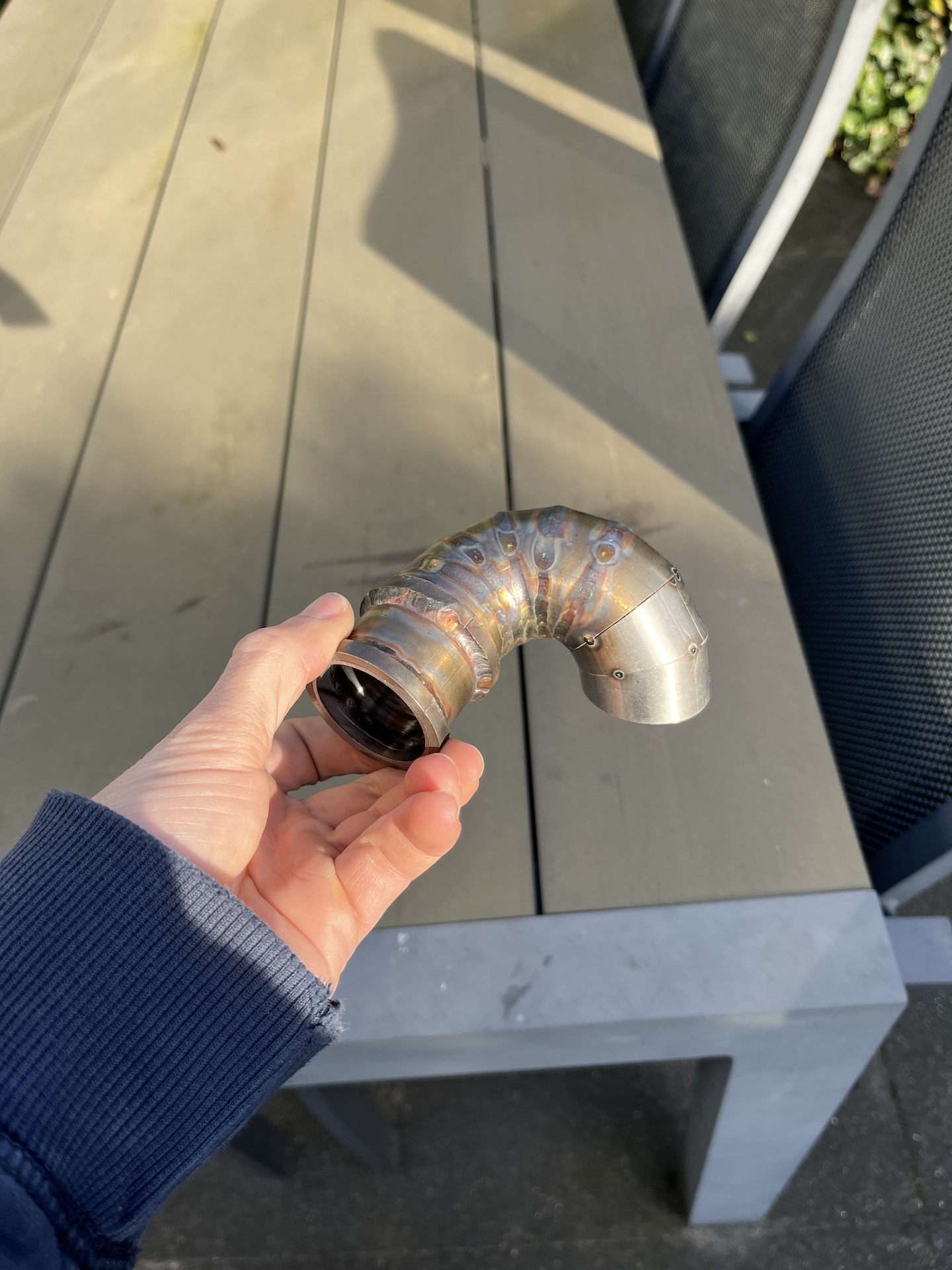

PIE-CUT EXHAUST

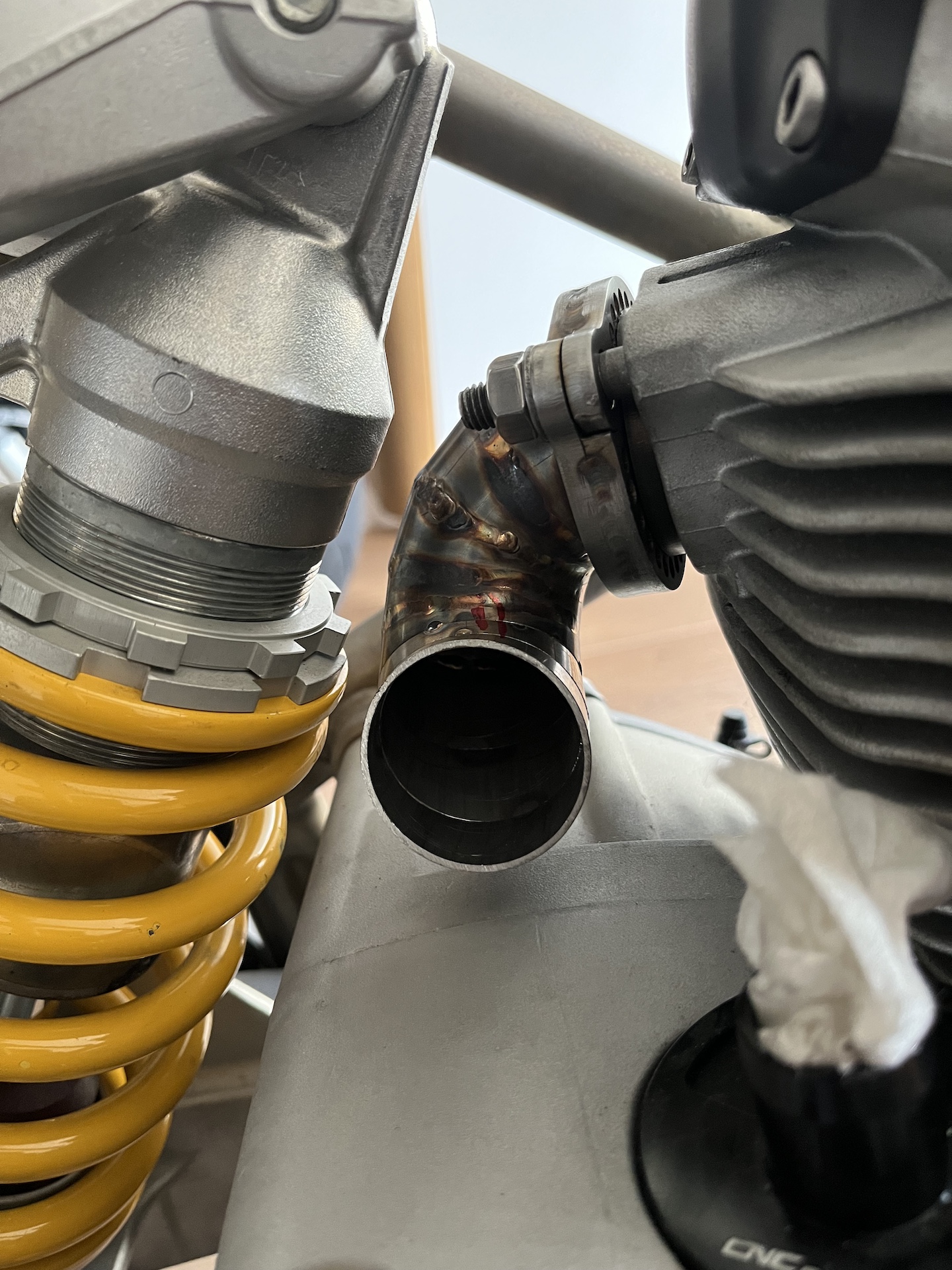

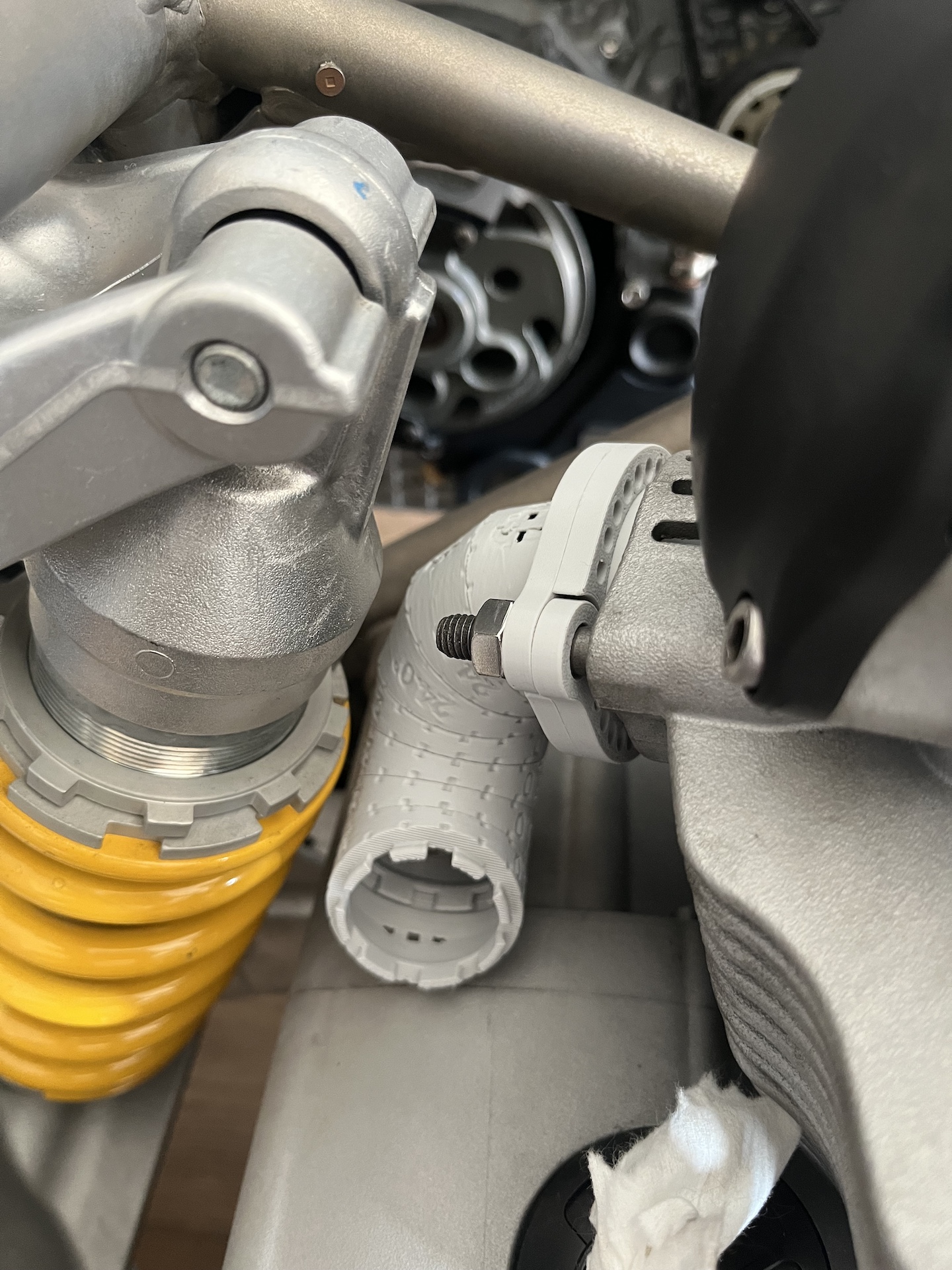

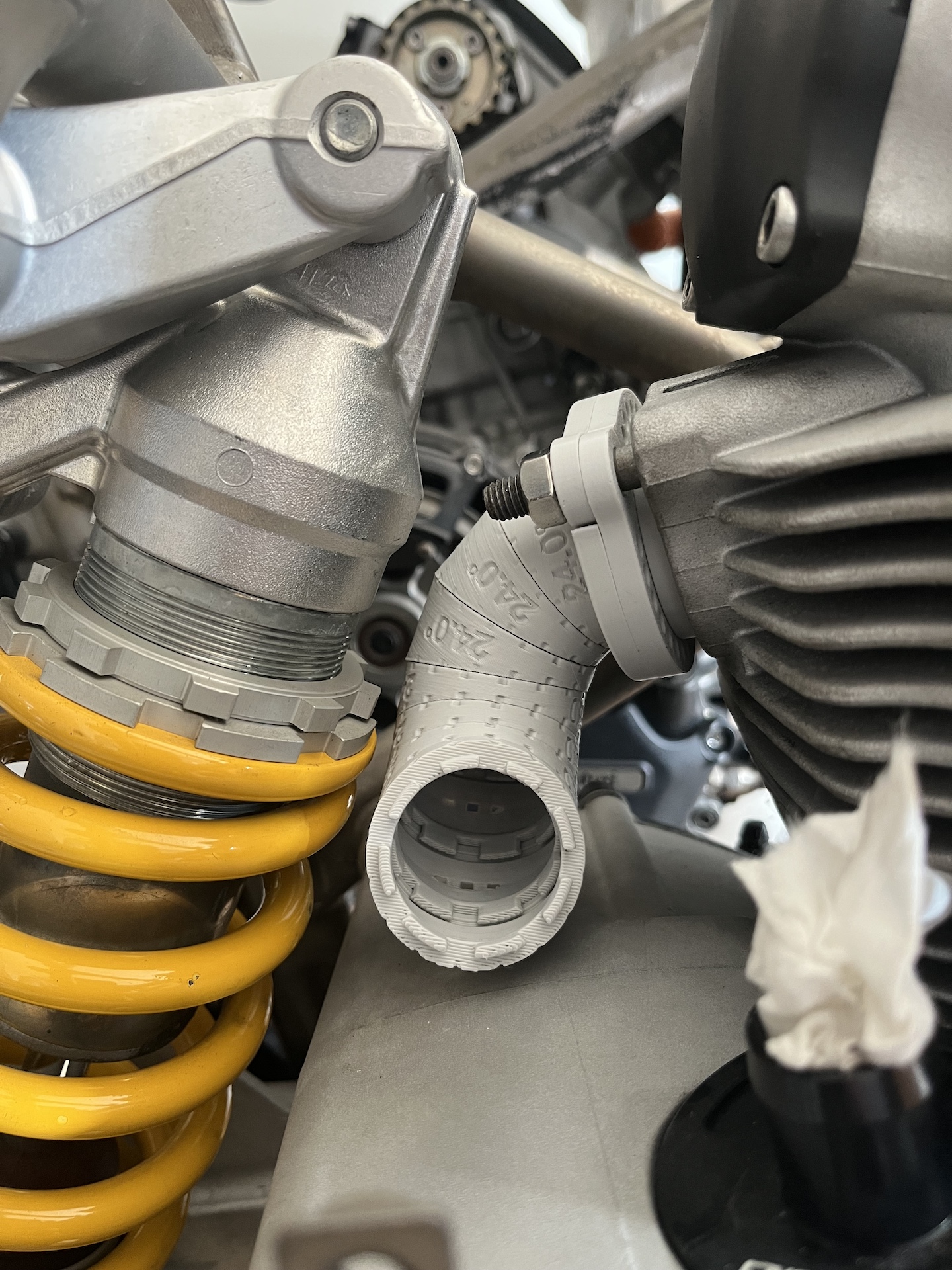

The exhaust for this bike will be made out of 50mm thinwall 1mm 304 stainless. Not all pie-cuts like the Desmoto project, but a combination of straights and pie-cuts (Thanks Maikel for sourcing this <3).

START REBUILDING THE ENGINE

Time to start rebuilding the engine. Everything brand new and its a joy to work with all clean and “new” parts.

A “gift” from one of my best friends Toine van den Biggelaar ❤. The engine was pretty rough originally and missing some parts.. Looked like it had been sitting outside in the rain.

ENGINE ALL DONE!

FTR04, Hyper 1100 EVO engine finished! So it will be sitting for a while and used after I finish the Desmoto project. Living in my living room for the next 2 years haha

Nothing to special internal wise, and it doesnt look that extreme. But damn it looks newer then new and slick!

• While building the other race engines I ordered and prepped some parts on the side to get this engine done.
• Tuned/flowed heads
• Glass bead blasted engine cases/cylinders/heads
• Cerakoted engine covers in black
• 900gr lightweight flywheel
• Ducabike clutch assembly and cover
• CNC racing crankcase breather
• Stock 48-2 timing gear instead of the original EVO gears (will be running this on a IAW5 ECU)
• Stock 1100 pistons
• All new 304 stainless bolts everywhere (yes with ceramic grease)

Expecting a conservative 105HP at the rear wheel with this engine.

GATHERING SOME PARTS

Been gathering some parts in the same time while working on the Desmoto project. Step by step gathering everything I need to build a complete custom bike haha.

• Got the rear wheel chemically stripped. Now ready to be painted in a later stage when the project is further along.
• Received 2 rough carbon Termignoni 916 exhaust tubes with beaten up internals (thanks Toine!). I will be using these to build a short custom underseat exhaust.
• Clip-on risers together with carbon clip-ons and Renthal grips
• Mosfet rectifier
• 1000/1100DS throttle bodies from my Swedish friend Alexandre . I still needed to source these since my EVO engine didnt have these yet.

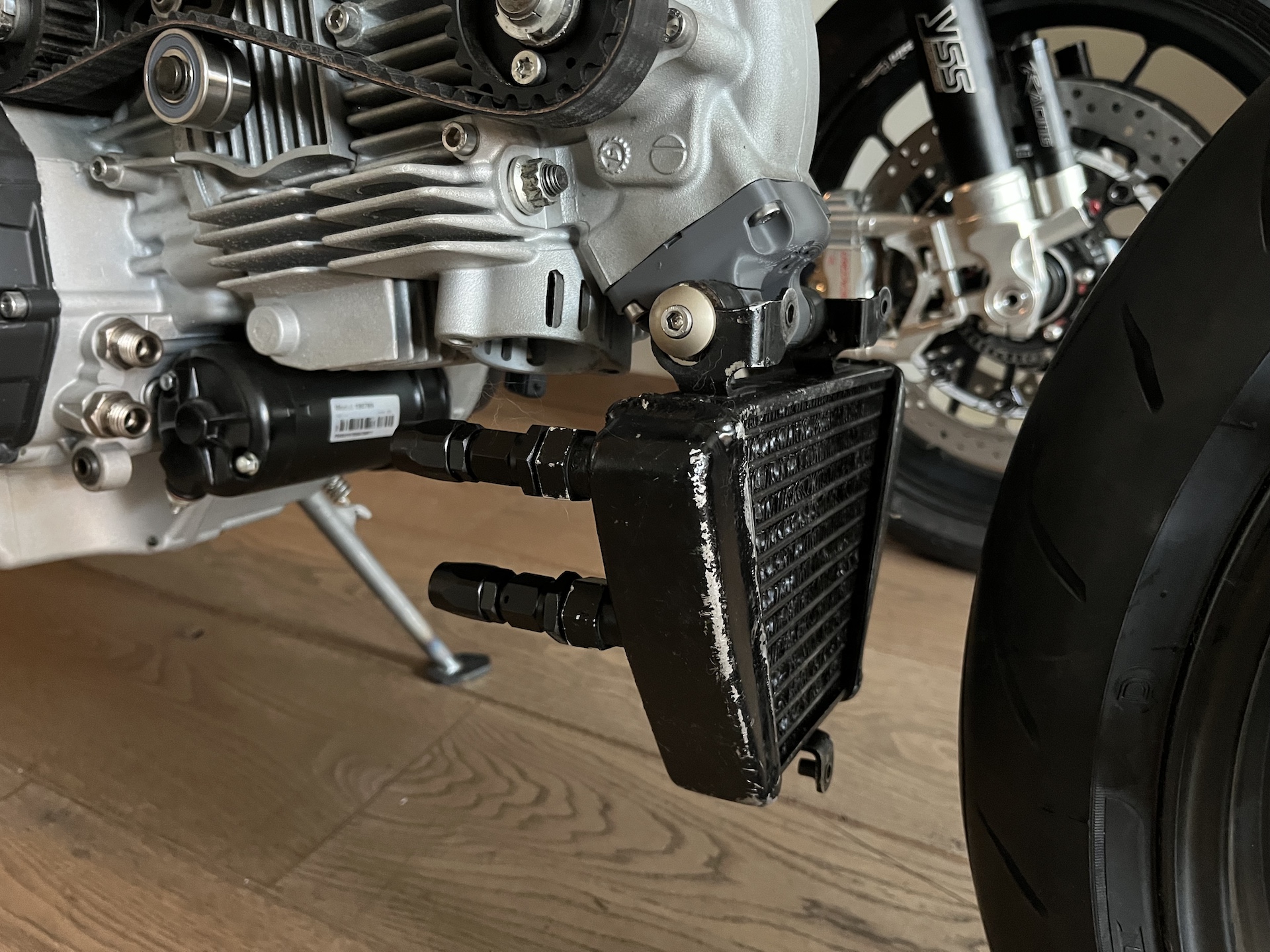

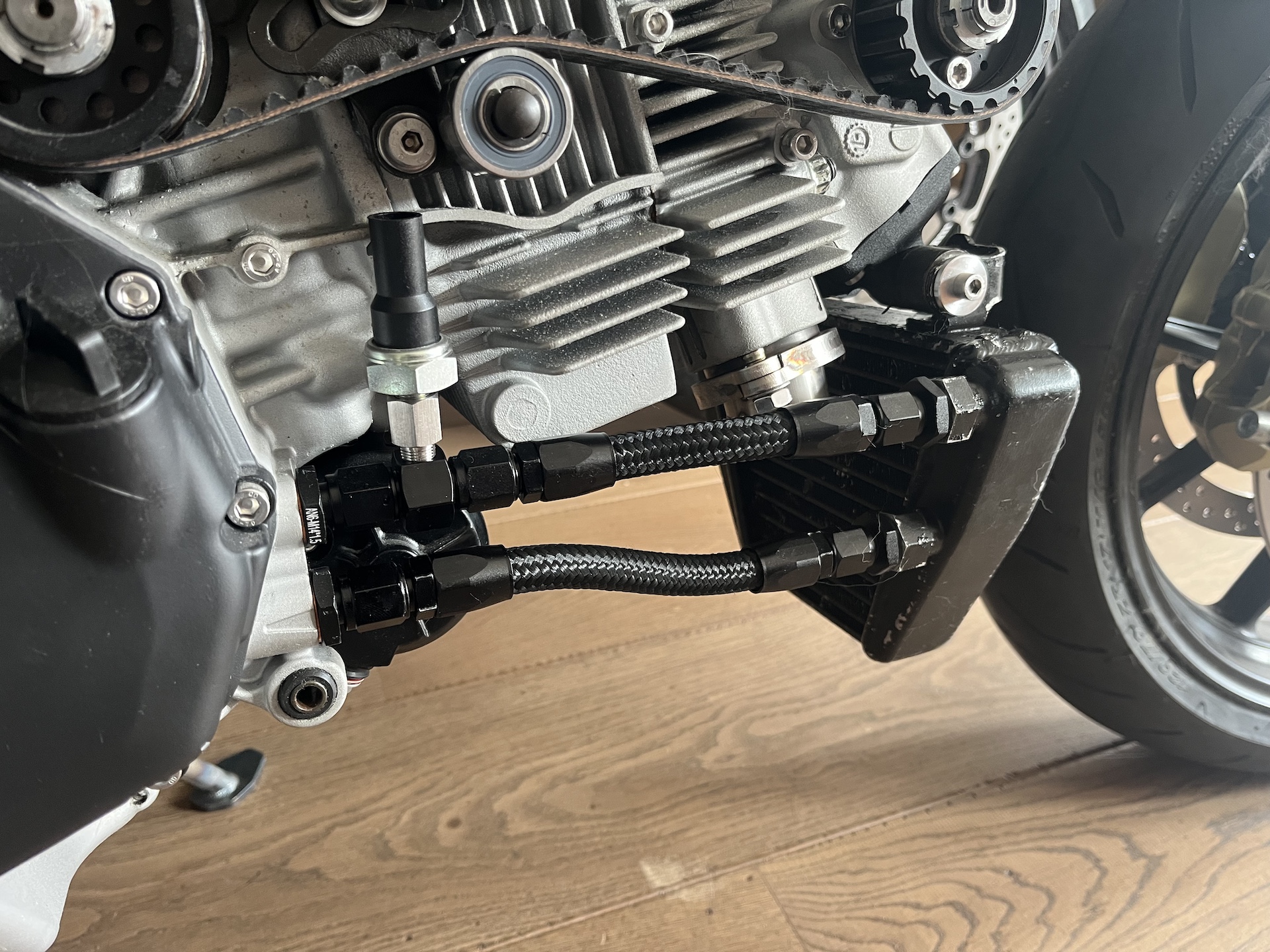

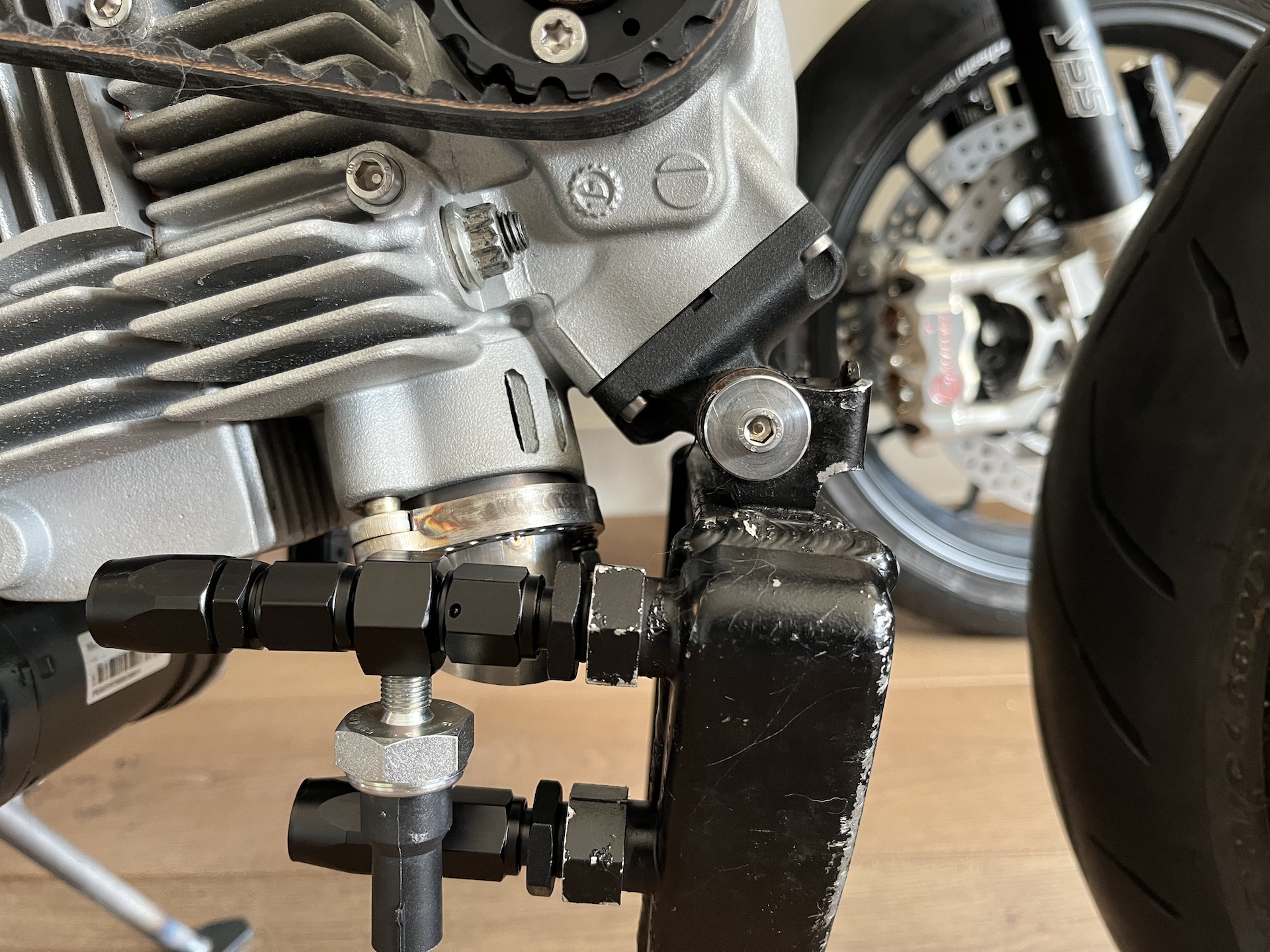

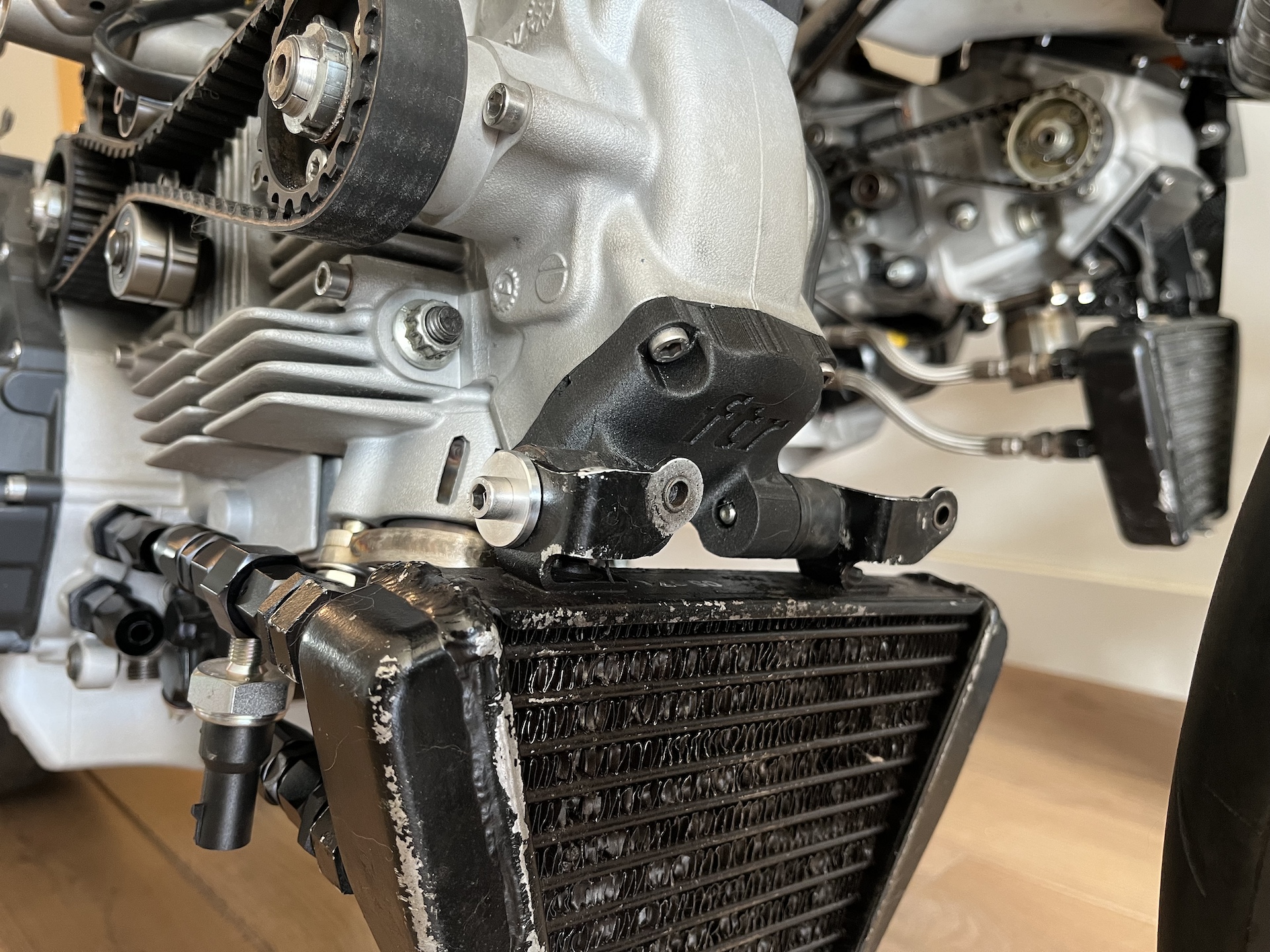

• Oil cooler with braided oil lines and AN6 fittings.
• Motogadget Motoscope Pro dashboard and Motogadget Mo-Lock
• Hypermotard Velocity stack kit, to get even more power out of the 1100 EVO engine. 5 exta HP on the rear wheel.
• Ducati 848 triple tree with steering damper
• IAW59M ECU from my Hypermotard 1100, replaced it with another one that came with the Termignoni exhaust kit.

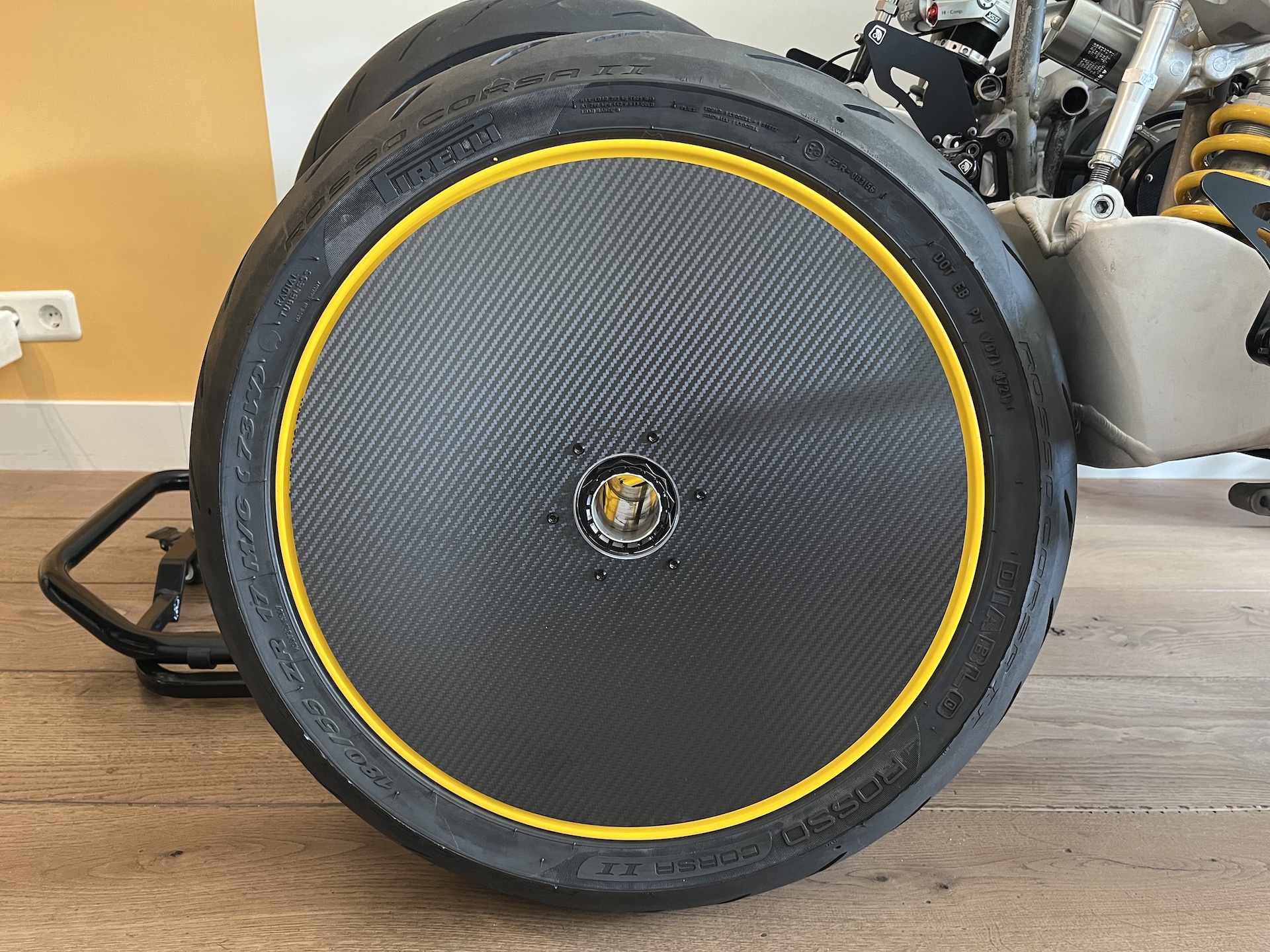

CARBON REAR WHEEL DISC

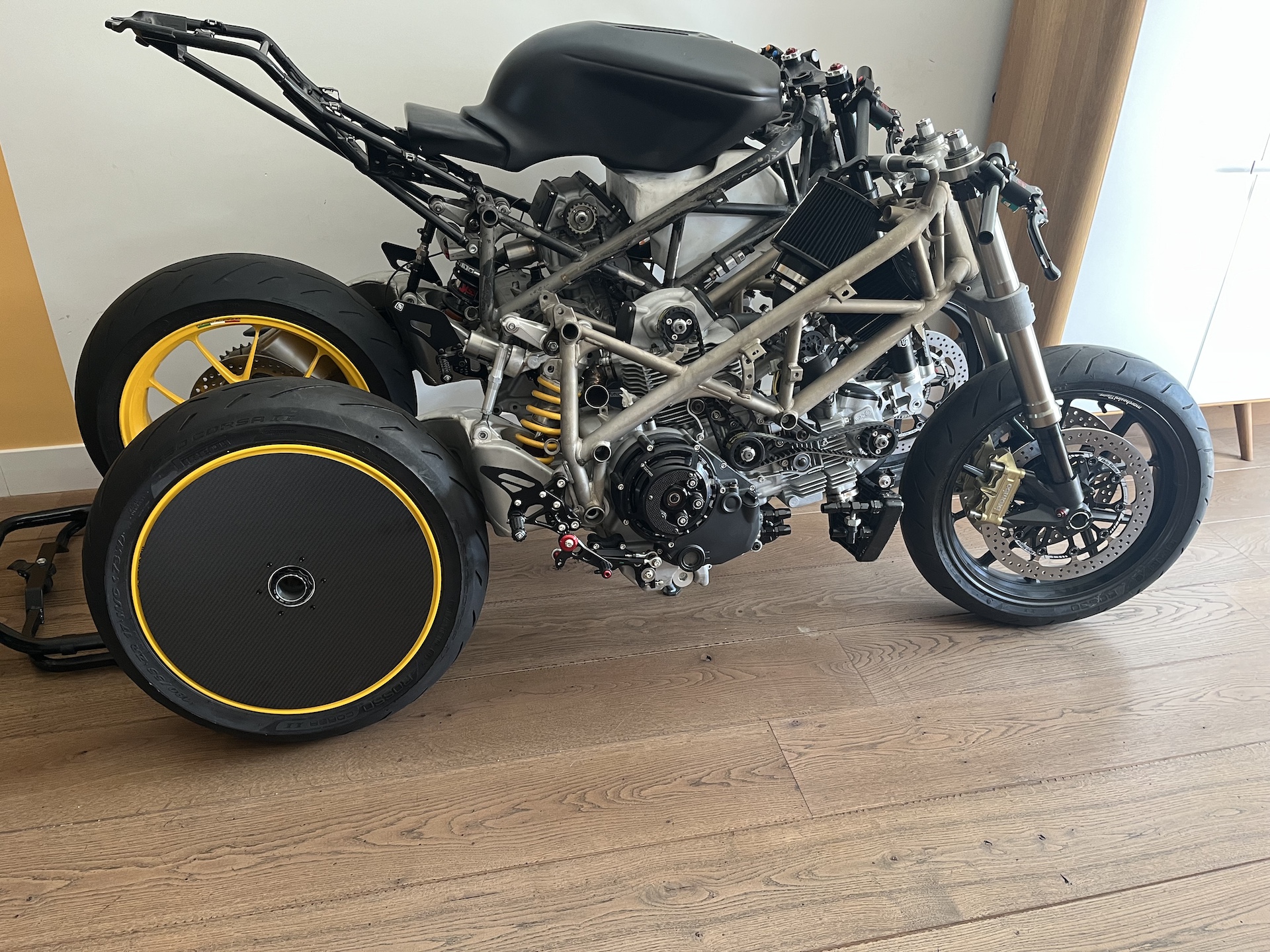

Received this carbon rear wheel disc from my new friend @_vengine_ (thanks Adrian!). Its mounted replacing the spacer ring where the rear wheel nut is mounted on. Clever solution!

Looks really cool in my opinion, but needs the right bike for it. Most people I show this setup are not convinced. I think with this project I can get the right looks for this to work.

Not 100% sure yet if I will be using this on this poject, but wanted to show it anyway.
